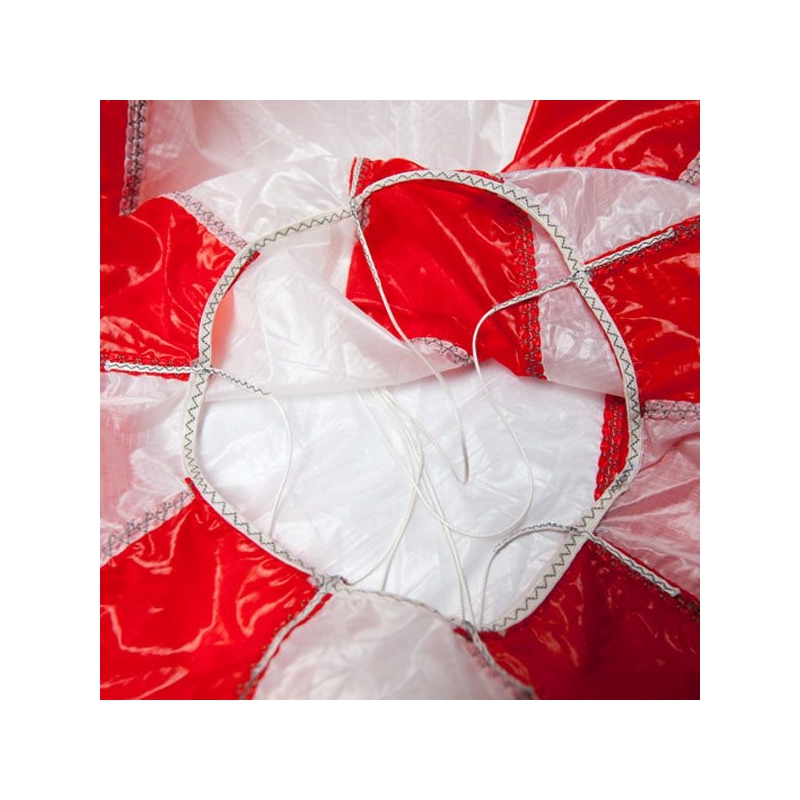

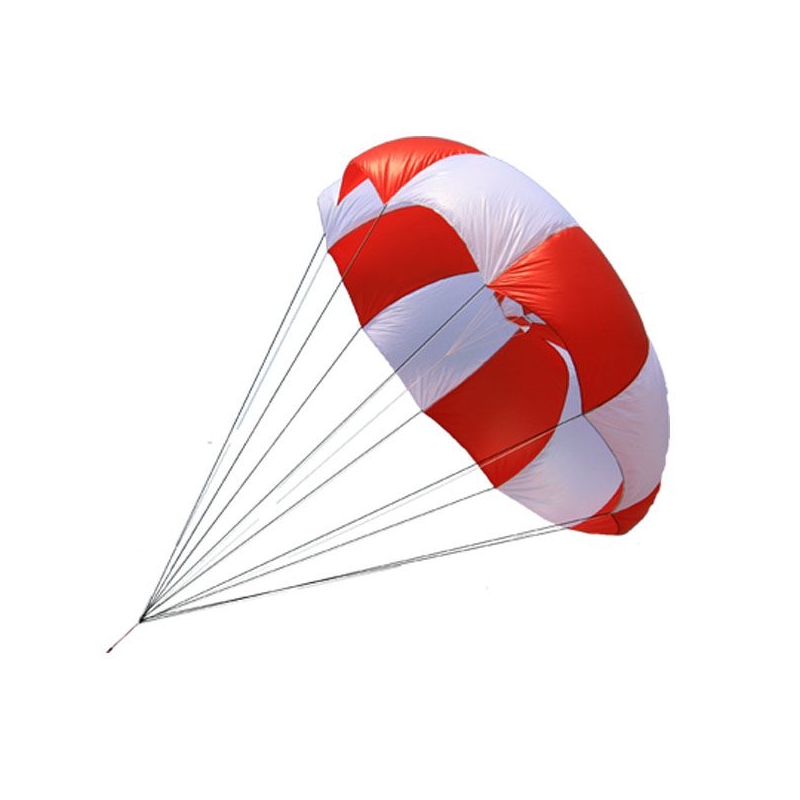

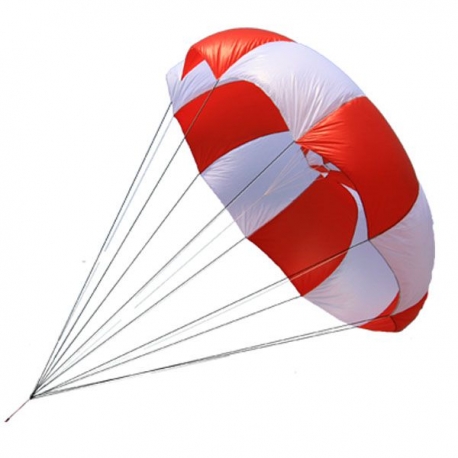

Rescue parachute - 15m2 / 161ft2
OP17106
New product

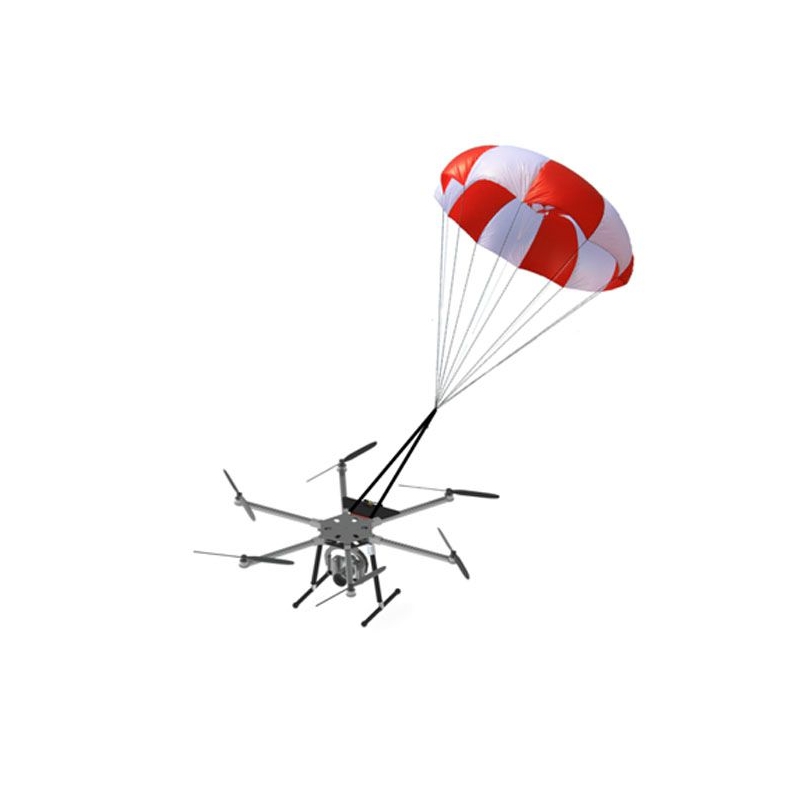

A 15m2 (161ft2) rescue parachute dedicated to drones with a total flight weight of 15 to 40kg
This parachute is compatible with all kinds of drones, it unfolds on order in a split second to ensure a smooth landing after a maneuver much less smooth! The container is attached to the parachute so that you can use it again immediately after a collapse. Really compact and light, very strong and equipped with reinforcements such as those you find on a full size parachute, no doubt this is going to be the perfect friend for your crazy trips or more wisely to efficiently protect your onboard photo / video equipment. The great thing is that you can use it on any kind of multirotors.
Features:
| Flat surface [m2] / [ft2]: | 15 / 161 |
| Total mass [gr] / [lb]: | 620 / 1.3 |
| Fabrics: | Special silicon nylon for rescue parachute |
| Tether strap material: | Nylon |
| Tether strap length [cm] / [in]: | 55 / 21.6 |
| Container dimensions [cm] / [in]: | 23x19x3 / 9x7.5x2.8 |
| Minimal shock resistance [kg] / [lb]: | 190 / 418.9 |
| Coefficient of lift: | 1.6 |
Indicative sink rate according to the total flight mass:
| Multirotor mass [kg]: | 12 | 15 | 18 | 20 | 25 | 30 | 40 |
| Sink rate [m/s]: | 2.8 | 3.2 | 3.5 | 3.7 | 4.1 | 4.5 | 5.2 |
| Sink rate [ft/s]: | 9.2 | 10.5 | 11.5 | 12.1 | 13.4 | 14.8 | 17.1 |
| Impact energy [J]: | 47 | 76 | 110 | 137 | 210 | 303 | 540 |
Included:
- 1 x 15m2 rescue parachute

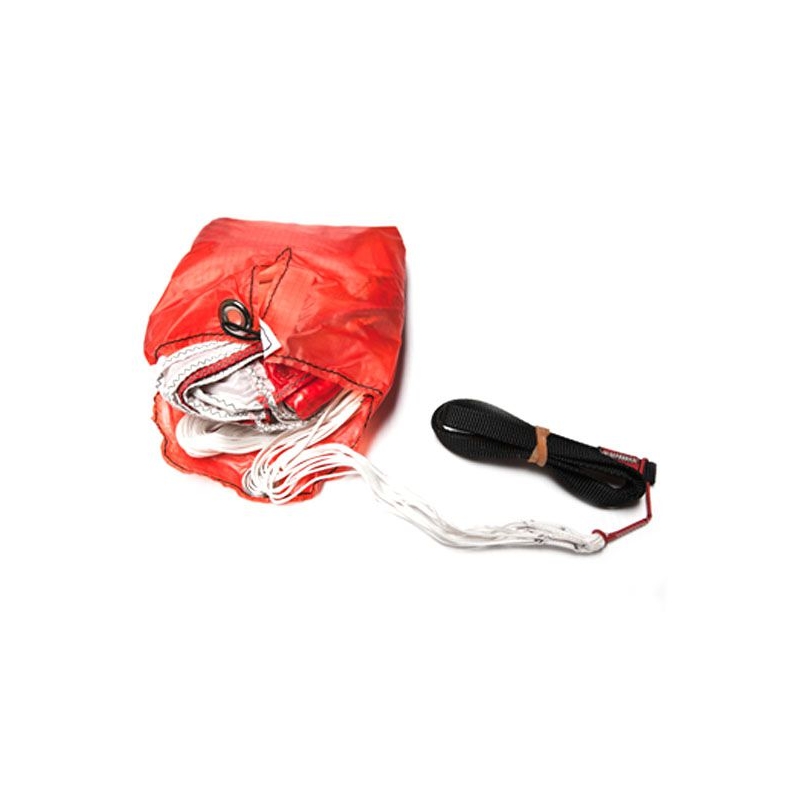

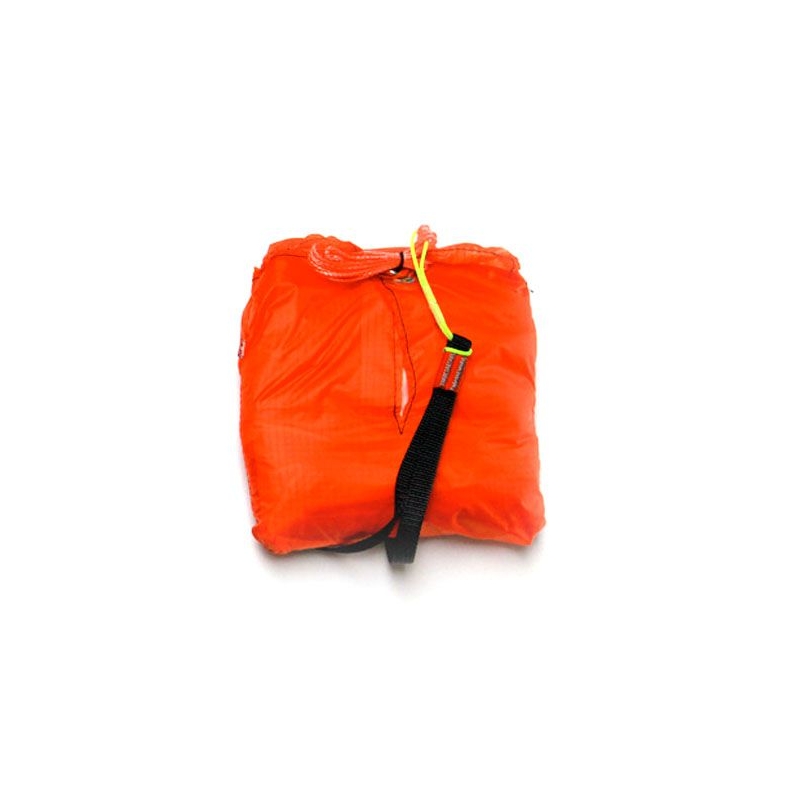

- 1 x container
Required and not included:
- Ejection system for parachute
