Parachute kit Safetech - ST100 + 4m2 parachute - (mass ≤ 7kg)
This new parachute rescue system will allow you to secure a drone up to 7kg (15.4lb) in any circumstances.
It will guarantee you an impact energy less than 69J, allowing you to easily registrate your machin regarding your airplane country regulations.
Warning: Last items in stock!
Availability date: 2017-07-24

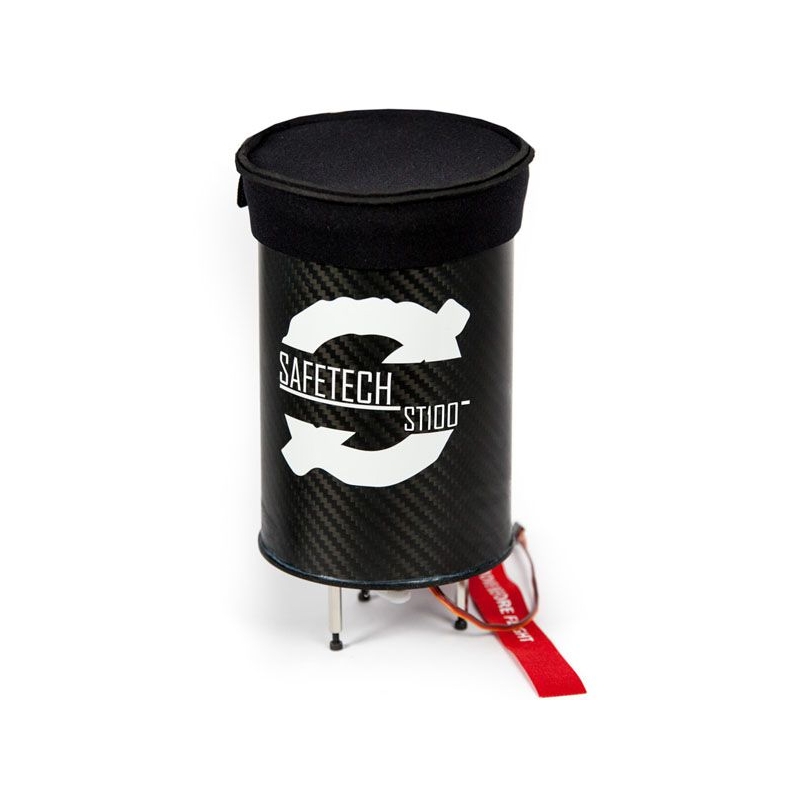

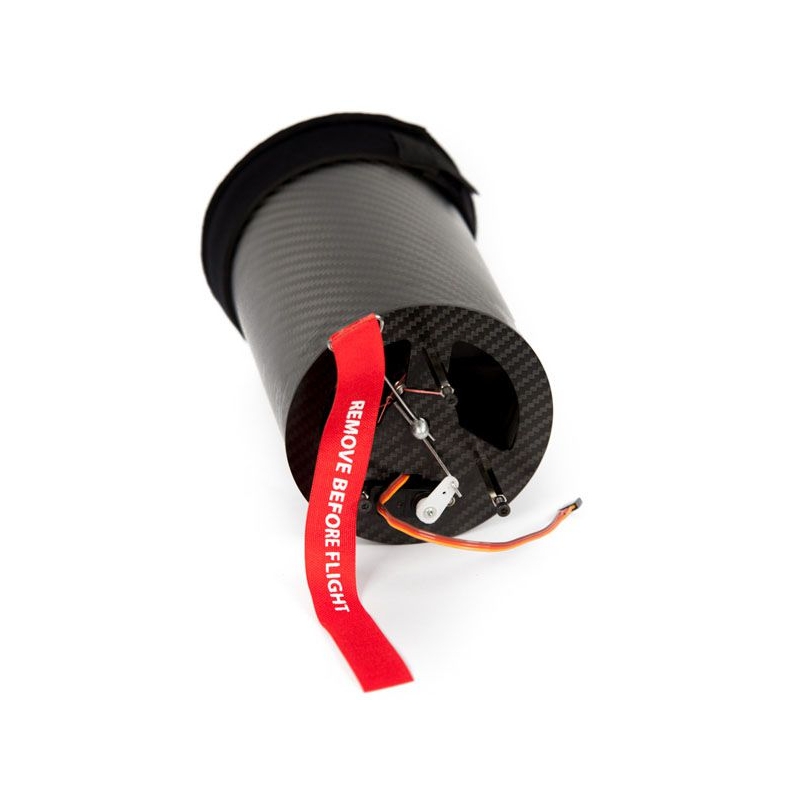

Drone Parachute Kit Safetech ST100 with a 4m2 parachute
- Super fast deployment: 0.3 à 0.8s
- Low sink-rate : 2.6 to 4.4m.s
- Only 612gr / 1.35lb
- Easy to install
- Controlled with a simple PWM signal
- Parachute ready to reuse in less than 60s after deployment
- Tube made of carbon
- Fixation lines made of Kevlar
- Universal mounting
- Locked for the transport
Pioneer in the drone rescue parachutes development, Opale Parachutes introduces its brand new range of Safetech® products.
A simple and groundbreaking technology
This new parachute rescue system will allow you to secure your drone in any circumstances.
Thanks to its new ejection technology, the parachute is ejected and deployed in less than 0.8s, with a deployment height between 4 and 10 meters. Unlike the competitors’ systems, the Safetech® does not apply a permanent pressure on the parachute, which allows to guarantee a safe ejection, a super fast deployment and also a longer parachute shelf life, without repackaging it every week.
A simple and fast fixation allows an universal mounting on all machines available on the market.
Heavy duty resistance
The rescue parachute strap is made of Aramid / Kevlar, ensuring a rupture resistance of 300kg (661lb). The lines and the strap are knots free, which allows to have a 100% mechanical resistance and an outstanding finish, for an optimal lifespan.
The parachute is made of the same quality standards than a rescue parachute ULA. The fabrics have a silicon coating, with a really low mass (only 32g/m2), that offers an extremely light system.
A low impact energy
A new parachute geometry was especially developed in order to offer the lightest rescue system, compact, a flight steadiness and an opening efficiency. You will benefit of a low sink-rate with a maximal impact energy of 68J for a 7kg (15.4lb) drone weight, with a rescue parachute kit only wheighing 612gr (1.35lb).
The result of this low impact energy will allow you to easily registrate your machine regarding your airplane country regulations.
Security, safety and reliability pledge
A market analysis allows to quickly understand the Safetech® technology benefits :
- Pyrotechnic free: Air transport and maintenance routine easy and safe, Safetech® prevents uncontrolled explosion risk.
- The parachute is free from permanent pressure: Shelf life increased, super fast and efficient deployment.
- Fuse system free: no useless battery weight, deployment time shorter and optimized, no Lipo battery inflating risk and no fire risk.
So you will understand, the Safetech® technolgy will offer the best safety and reliability standards to protect your drone in any situations, with a very competitive price.
- Tube dimensions: 160x100mm / 6.3x3.9in
- Material: Carbon
- Total weight: 612gr / 1.35lb
- Servomotor connector: UNI
- Signal: PWM compatible with a transmitter or a stand-alone module
- Tension : 4.8 to 7.2v
- Flat area: 4m2 / 43ft2
- Lines : Dynema / Spliced Aramid Kevlar (no knot)
- Fabrics: 32gr/m2 with silicon coating
- Fixation strap Aramid 300daN (300kg / 661.4lb)
Indicative falling speed according to the total flight mass for a 4m2 (43ft2) parachute:
|Multirotor mass [kg]:||2||3||4||5||6||7|
|Sink rate [m/s]:||2.6||2.9||3.4||3.8||4.1||4.4|
|Impact energy [J]:||6||12||23||36||50||68|
Included in this kit:
- 1 x Safetech ST100 ejection tube
- 1 x 4m2 parachute
- 1 x fixation strap
- 1 x servomotor
- 1 x hardware and accessories kit
Required and not included:
- Transmitter or stand-alone module
- 4.8 to 7.2V battery
